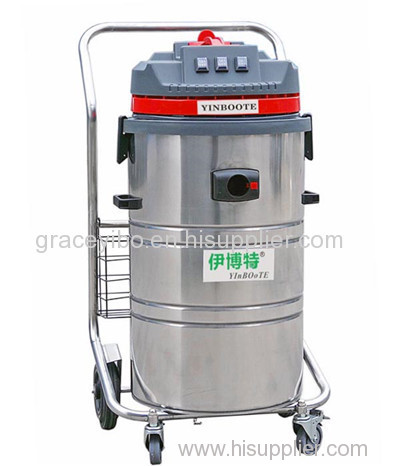

YInBOoTE Industrial Vacuum Cleaner IV-3680

Product model:IV-3680

Motor power:3600W

current and voltage:220V/16A

Dust Collector Vol:80L

Vaccum pressure:205mbar

Motor Air Volume:575m3/h

filtering surface:15000cm2

Filter Precision:0.3um

Length of wire:8m

Machine weight:34kg

Machine dimensions:69*58*112cm

The machine origin:Wuxi

Features and Application:

1,Filtration system

A,Innovative HP6300 using modified nylon fibre, filter area is 6300 cm2, the surface is very smooth, can reduce the adhesion of dust rate was 80%, the filter blocked time than the traditional filter extension more than 21 times.Say goodbye to the history of the past need frequent cleaning filter, improve the work efficiency, reduce the work intensity of user.

B,HEPA filter system, tiny particles of dust, can filter the 0.3 um gather dust efficiency reached 99.995%, 100% to ensure the discharge air clean.Also better protect motor, motor service life is longer.

2,Power unit

A,Frame and the dust collecting barrel is made of stainless steel manufacturing, bearing capacity can reach more than 300 kg.

B,The fuselage with the dumping function, it is very convenient to clean up the rubbish inside bucket, the large volume of 80 l dust collecting barrel, higher collection efficiency.

C,With 6.5 cm width after the big wheel, let the machine as a whole more smoothly, the former small round for the brake setting, can be fixed to park where there is tilted.

D,Rear bodywork is equipped with a supporter bar, can be placed commonly used accessories or simple tools, use more convenient and quick to get working.

3,Power unit

A,Three 1200w heat-resistant motors to provide power for IV-2480,to  ensure that it has a strong enough horsepower in industry, and also you can choose one according to the needs of work independent work or more than a single motor work at the same time,This is a the most energy-efficient models.

B,The quality of imported motor, all copper core manufacturing, heat resistance stronger.The ventilation cooled by cooling system, ensure the machine can continuous work for a long time.

4,Accessories unit

A,Dust brush and brush with water roller, easier when using, and vacuuming brush brush brush and water absorption strip can be replaced, reduce the cost.

B,Vacuum hose manufactured composite nylon material, every 10 kilograms of tension, twist number of up to 100000 times.Acid and alkali resistant and corrosion performance is more outstanding.

5,Product Application

IV-3680 industrial vacuum cleaners can dust absorption, water absorption, scrap iron, wood, plastic particles, sand, the article such as wool cloth with soft nap, the nimble convenient design, in view of the ground to clean up all kinds of plants, equipment cleaning and other convenient, efficiency is also higher.

6,Product application advantages

IV - 3680's main characteristic is light and convenient, the dust in the air volume is larger for collect some frivolous, the machine is equipped with a dust filter system, to prevent the filter blockage, affect work efficiency.
